320*240
QuadIR™ Resolution

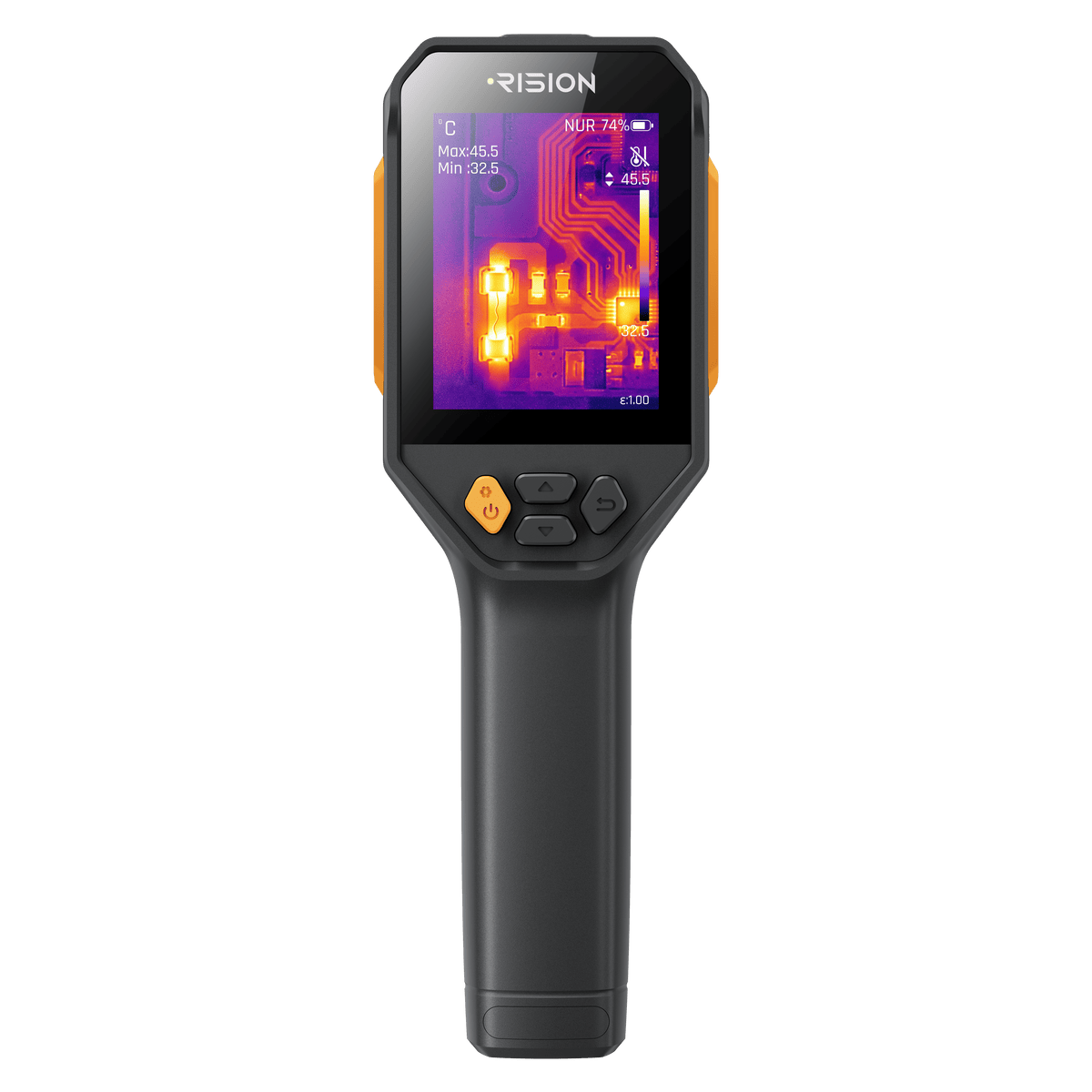

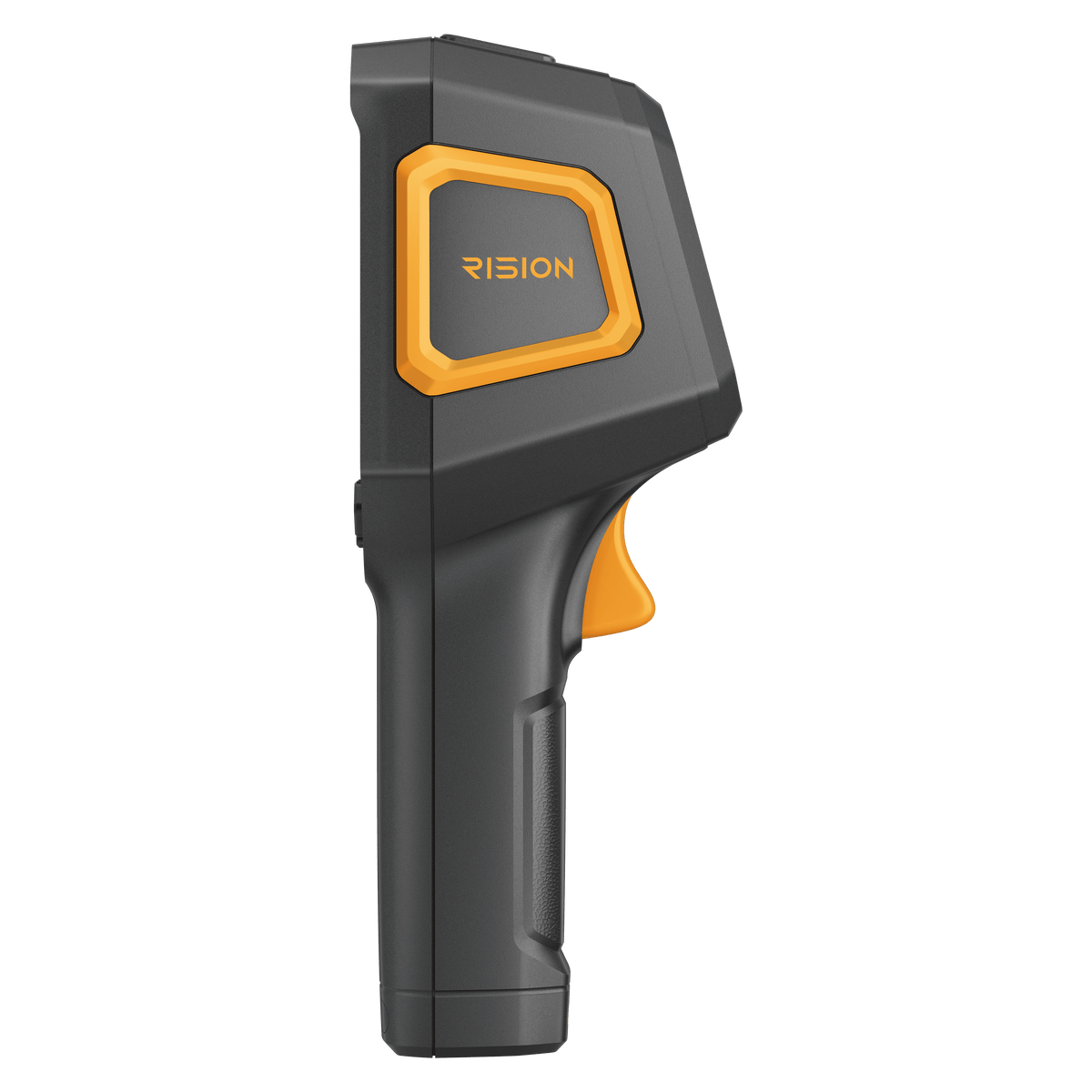

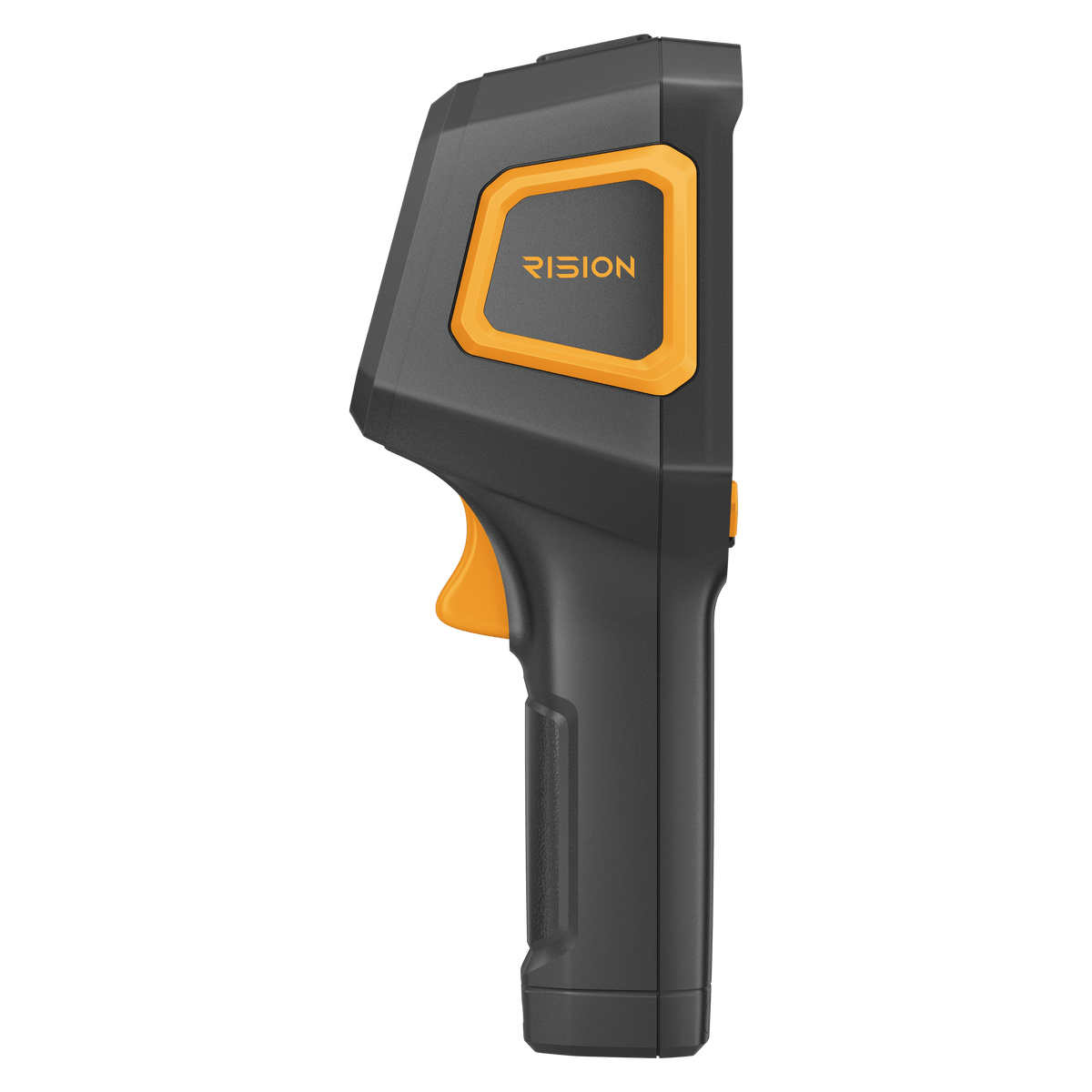

RISION Torix Handheld Thermal Imager
Tips：Sign Up & Get 5% Off
Professional Handheld Thermal Imaging, Made Simple. Power on, point, and know. No complicated setup. No time wasted.
- 320×240 QuadIR™ Resolution: Enhanced from native 160×120, with ≤40 mK NETD.
- Larger, Clearer Target View: 15% to 50% larger than comparable products, shown on a 2.8-inch large display¹.

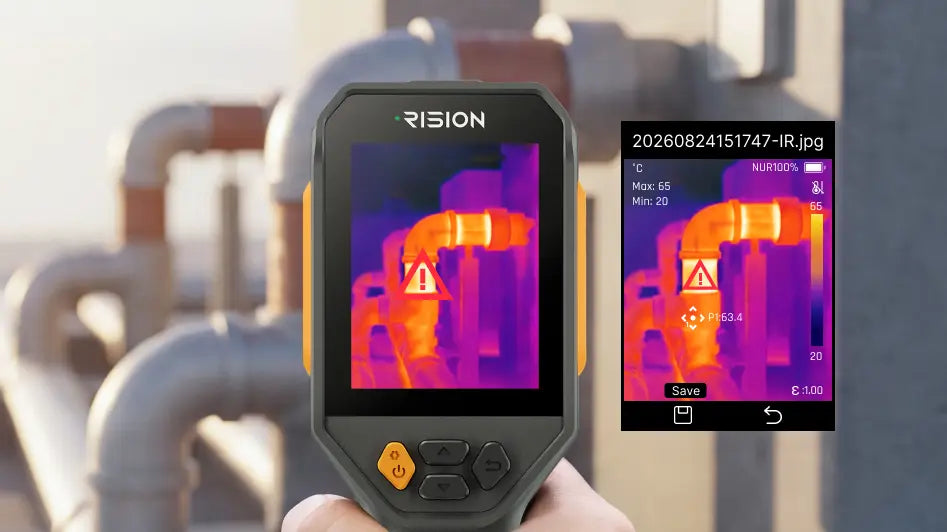

- Wide-Ranging Temperature Insight: -4°F to 1022°F (-20°C to 550°C) measurement range, ±2°C or ±2% accuracy, over-temperature alerts with automatic image capture.
- Flexible Capture and Storage: Removable microSD card storage for JPEG images and MP4 videos.
- Deeper PC Analysis: RISION Smart for Windows PC analysis and report generation.
- All-Day Power: 10+ hours runtime with a 60-minute full charge.
1. The claim of a 15% to 50% larger target view is based on internal comparative testing against some handheld thermal cameras available at the time of testing. Results may vary by comparison model and test conditions.
Fast Delivery
2 Years Warranty
Lifetime Technical Support
30-Day Money back
Payment Methods
Delivery Method

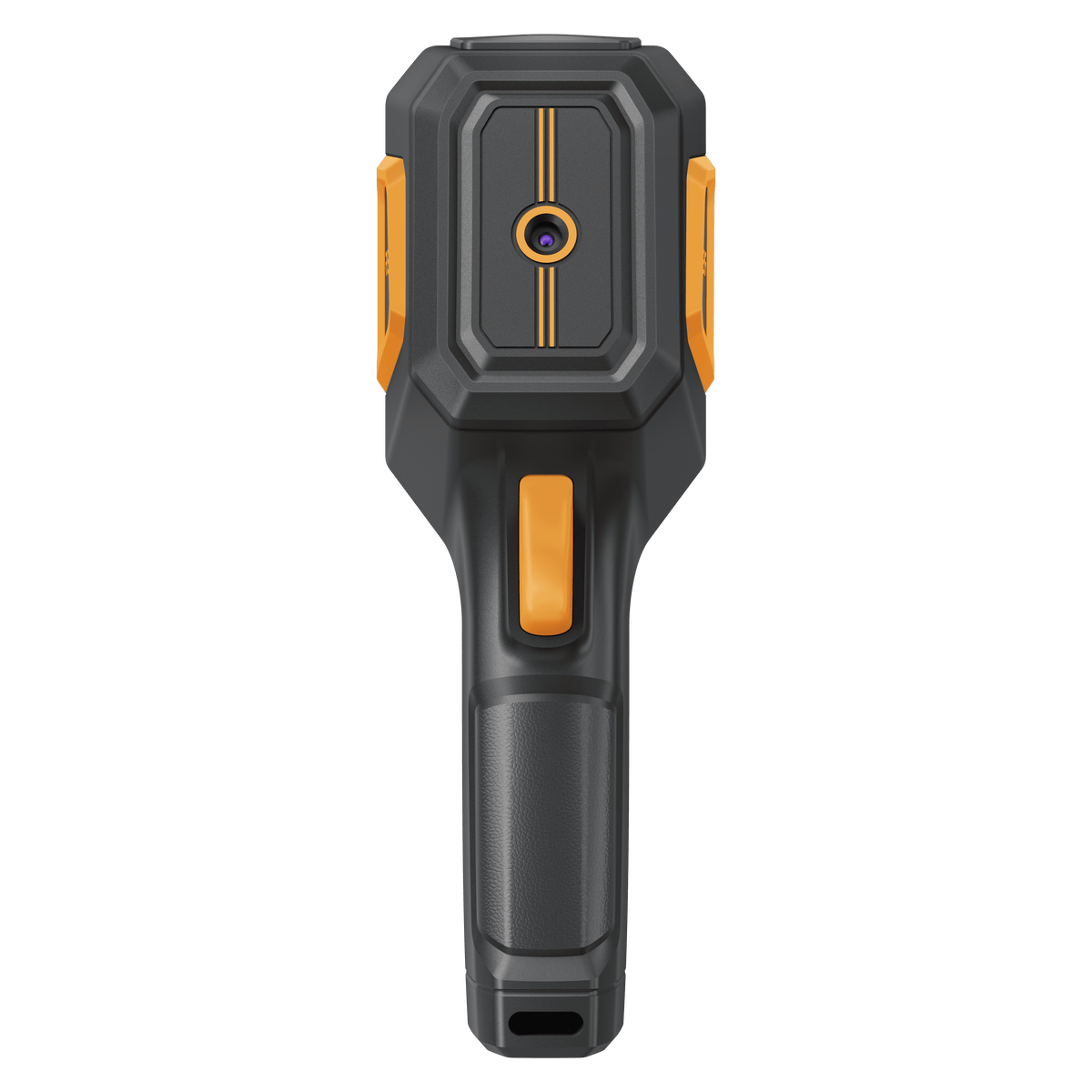

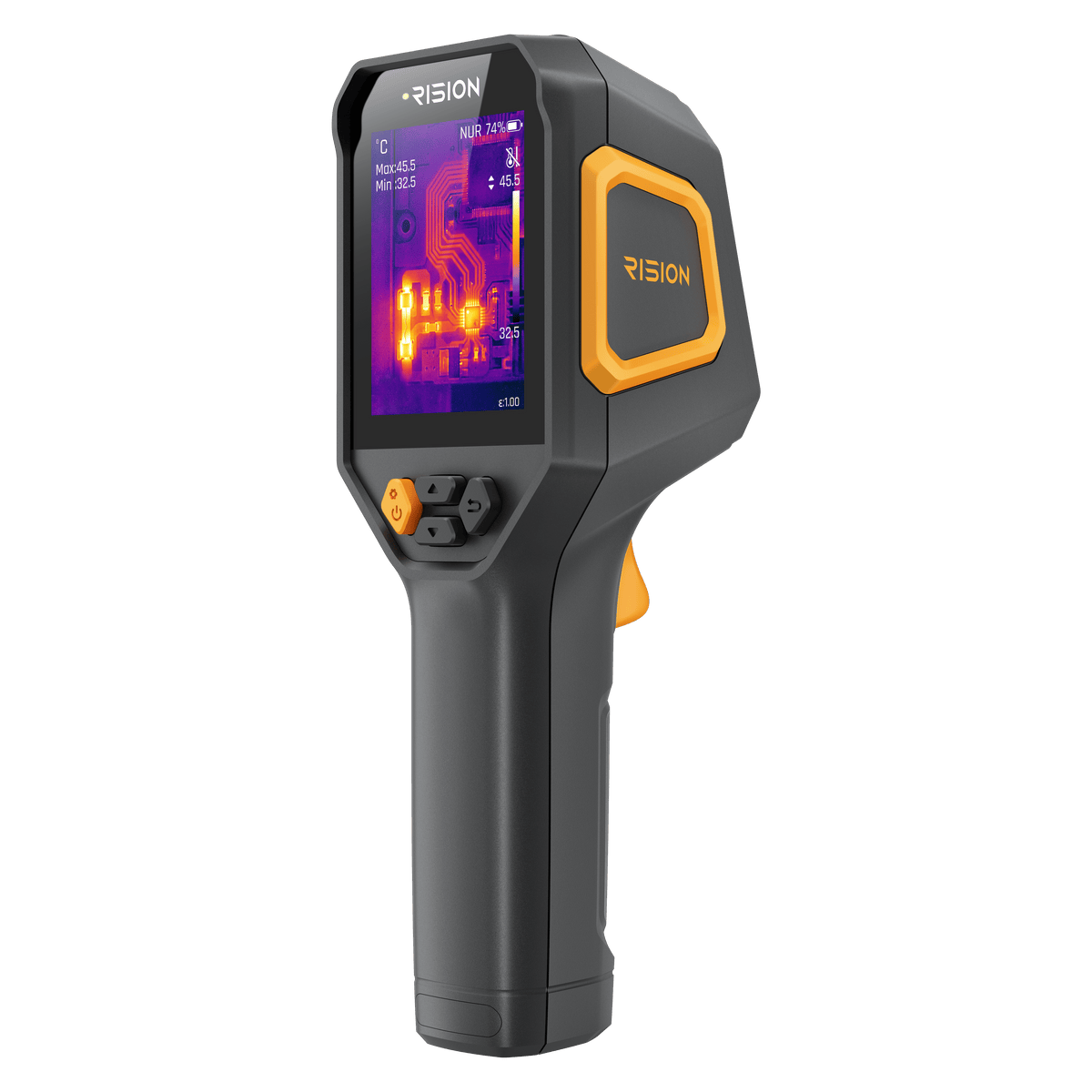

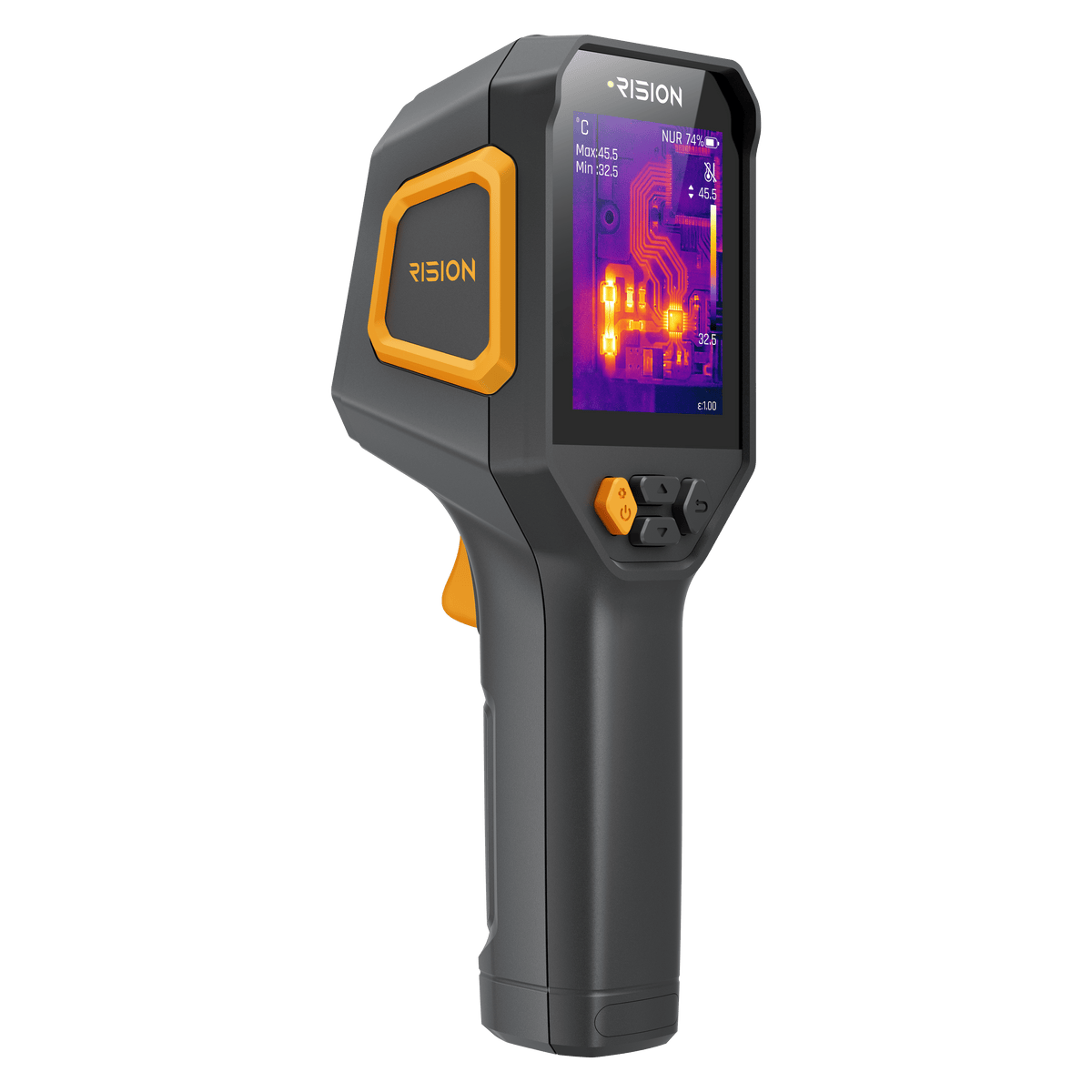

RISION Torix Handheld Thermal Imager
Angebot€0,00
RISION Torix
Your Thermal Inspection Ace, Hands-On, Leveled Up.
(-20°C to 550°C)
-4°F to 1022°F
Temperature Range
Removable SD Card
Flexible Storage
2.8" LCD
High-Resolution Thermal for Sharper Detail

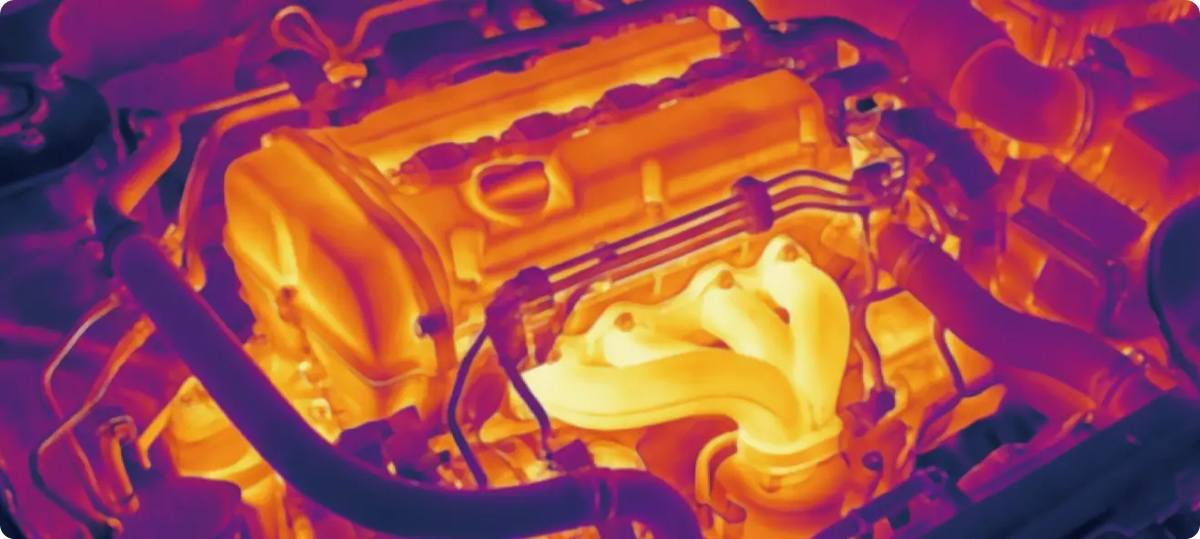

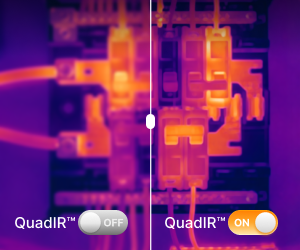

Native 160×120 resolution, enhanced to 320×240 with QuadIR™ technology. NETD ≤40 mK reveals subtle temperature differences, and the 25 Hz frame rate delivers smooth scanning with minimal motion blur. Clearly identify overheating electrical components, hidden water leaks, and insulation defects before they become larger problems.

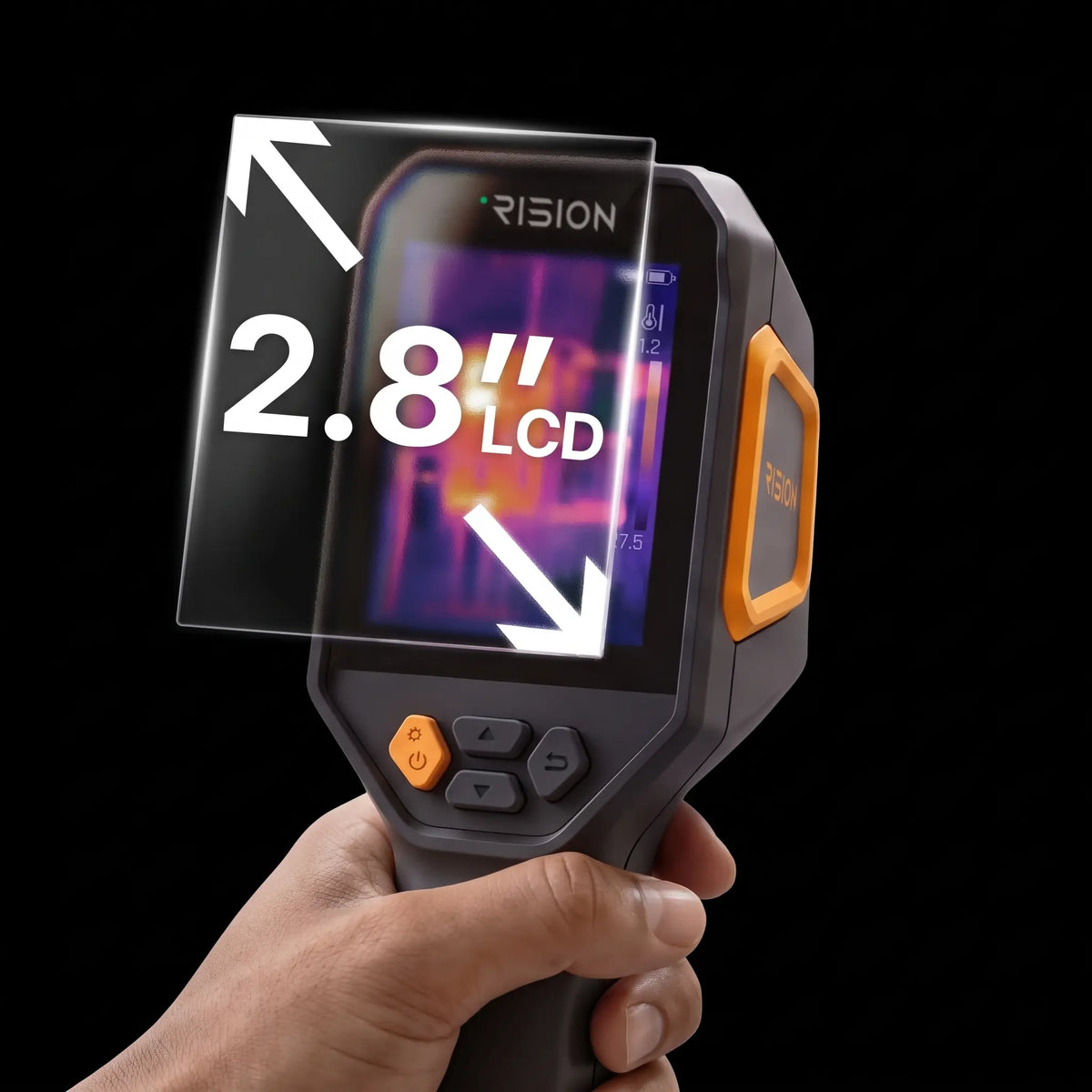

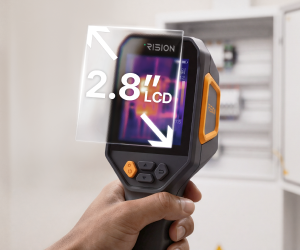

Built-in DisplayLarge 2.8-Inch
Large 2.8-Inch
DISPLAY FOR CLEAR,
STANDALONE INSPECTION
See more clearly on the built-in 2.8-inch display and start inspecting as soon as the device powers on, making thermal details easy to read at a glance.

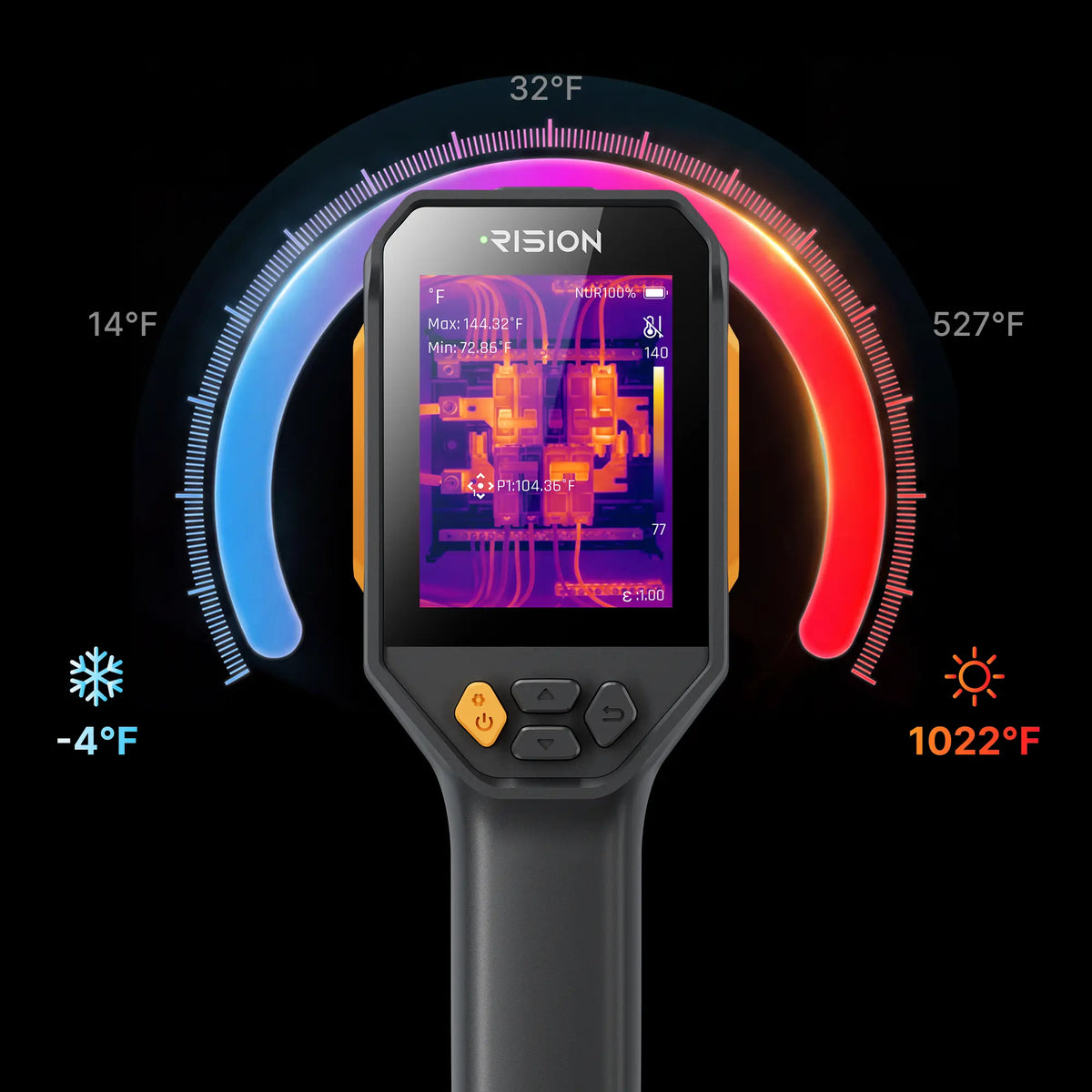

Wide TemperatureRange for Versatile
Inspections
-
Temp Accuracy±3.6°F(±2°C)
-
Heat Sensitivity40mK
-
Temp Range-4°F to 1022°F

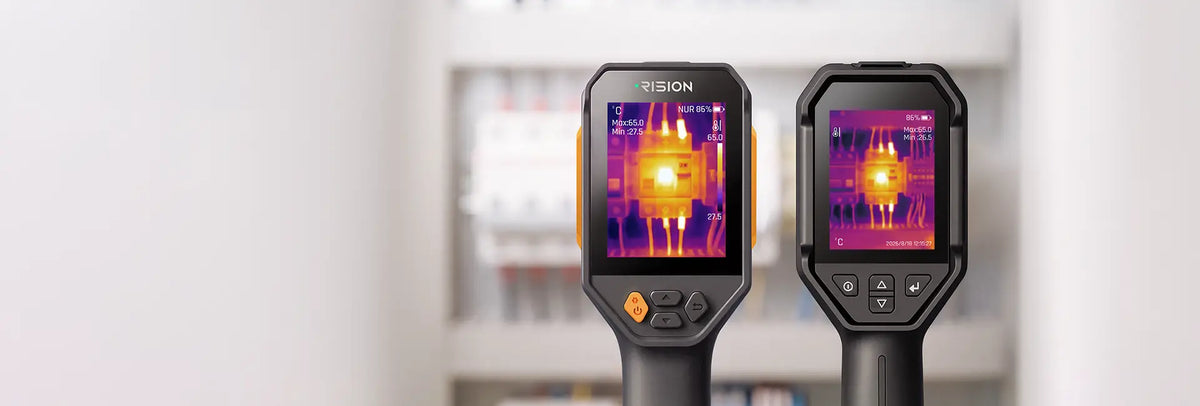

Higher Magnification
for Finer Details and
Clarity
See finer details clearly at the same inspection distance. Small components are easier to inspect at close range, while targets remain clear from medium and longer distances, without moving unnecessarily close to hot or hard-to-reach areas.
*The claim of a 15% to 50% larger target view is based on internal comparative testing against some handheld thermal cameras available at the time of testing. Results may vary by comparison model.

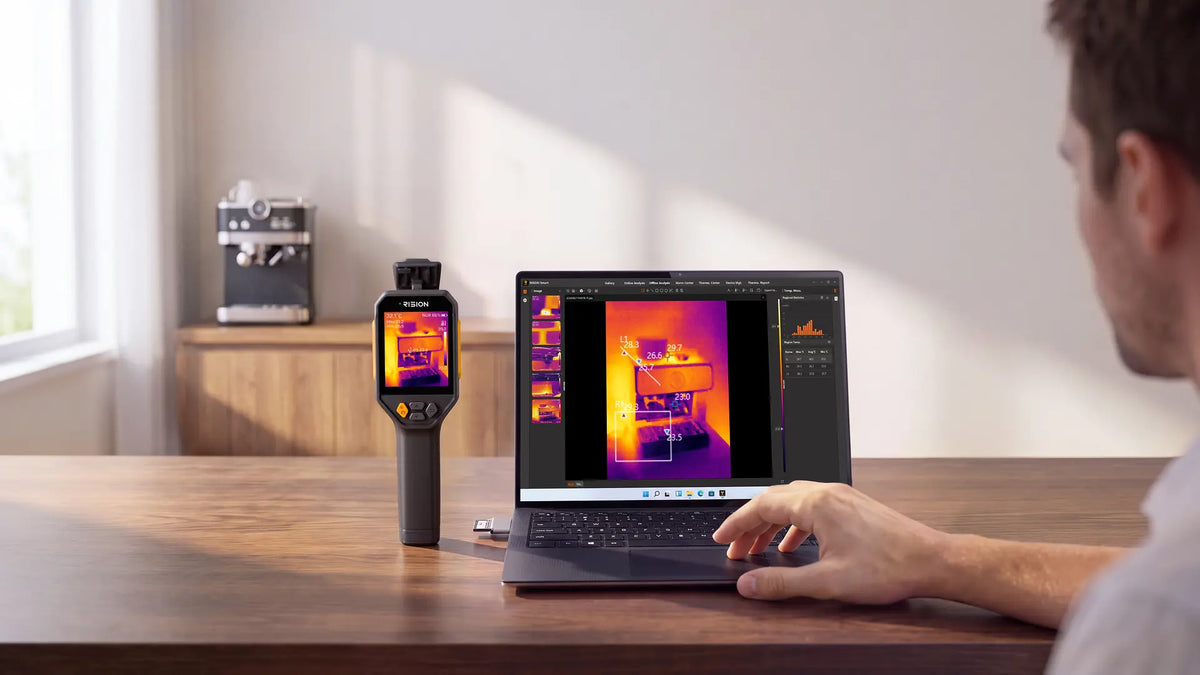

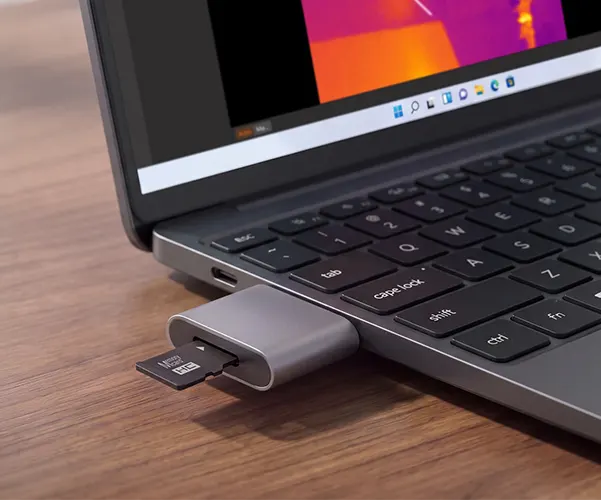

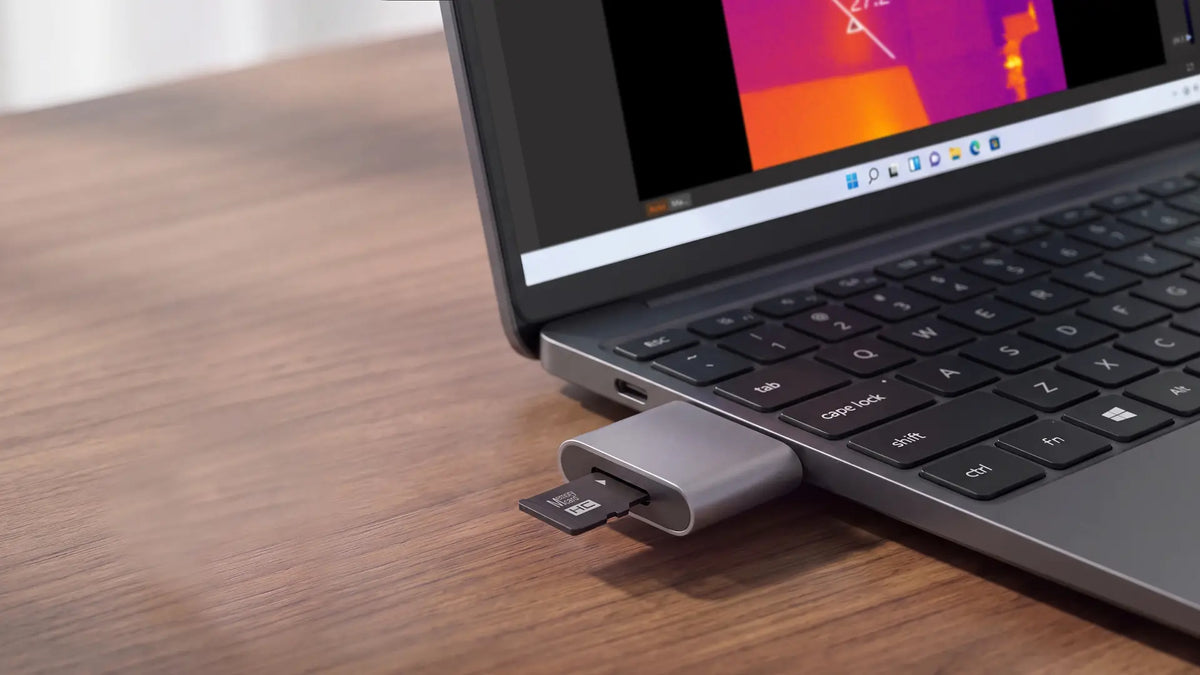

Flexible SD Card Storage and Comprehensive PC Analysis
Save JPEG images and MP4 videos to a replaceable SD card for flexible storage and data transfer. Move files to a computer without keeping the imager connected. The Windows PC software supports thermal analysis, secondary editing, and report generation.

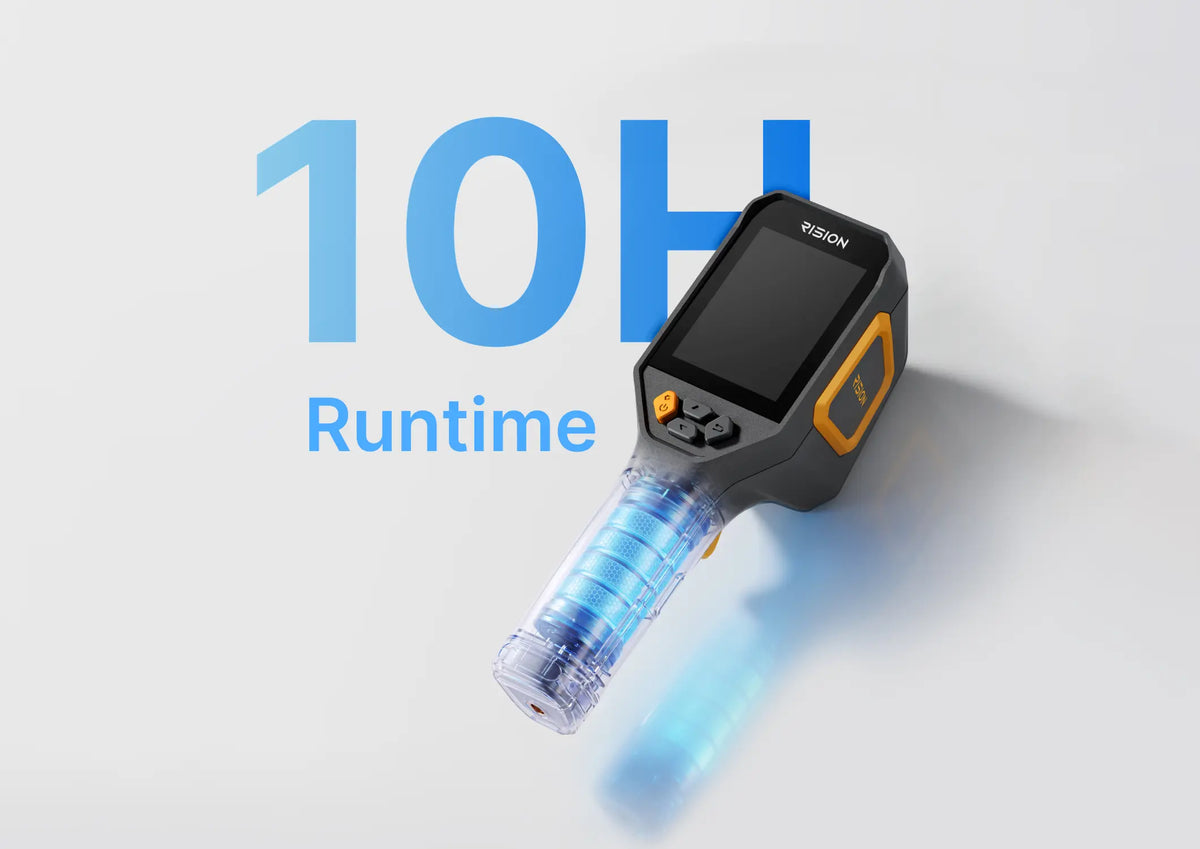

More Runtime. Less Downtime
More than 10 hours of runtime keeps HT01 working through a full day of inspections. When it is time to recharge, the 2750 mAh battery reaches a full charge in 60 minutes. Even after long-term storage, HT01 can power on and start working immediately, helping keep the device ready whenever it is needed.
10+ hrs
Runtime
60-min
Full Charge
Rugged IP54 Design
for Everyday Reliability
Built for real-world home and maintenance tasks.

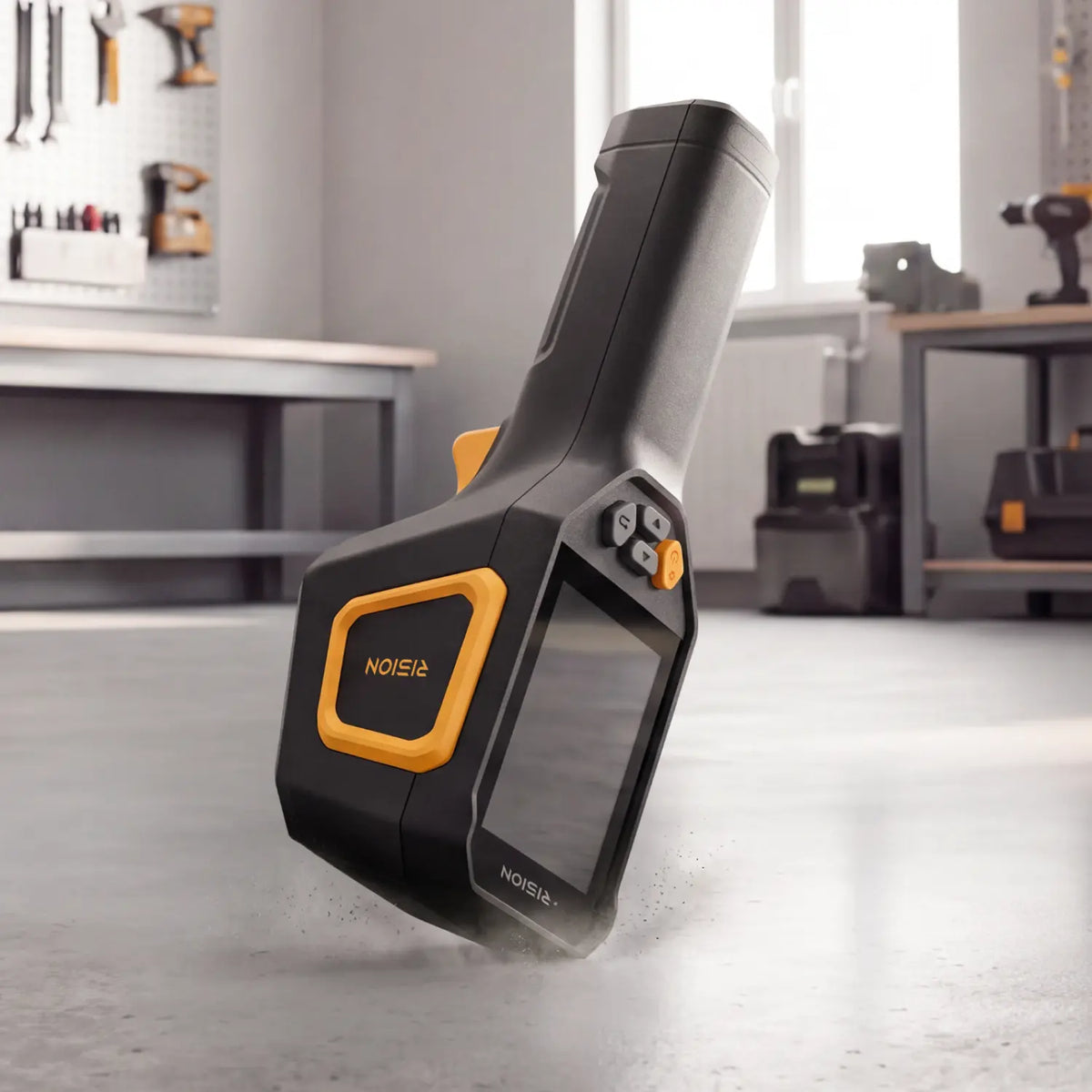

IP54 Protection
Built for everyday home and maintenance tasks, HT01's IP54-rated protection helps guard against dust and splashes.

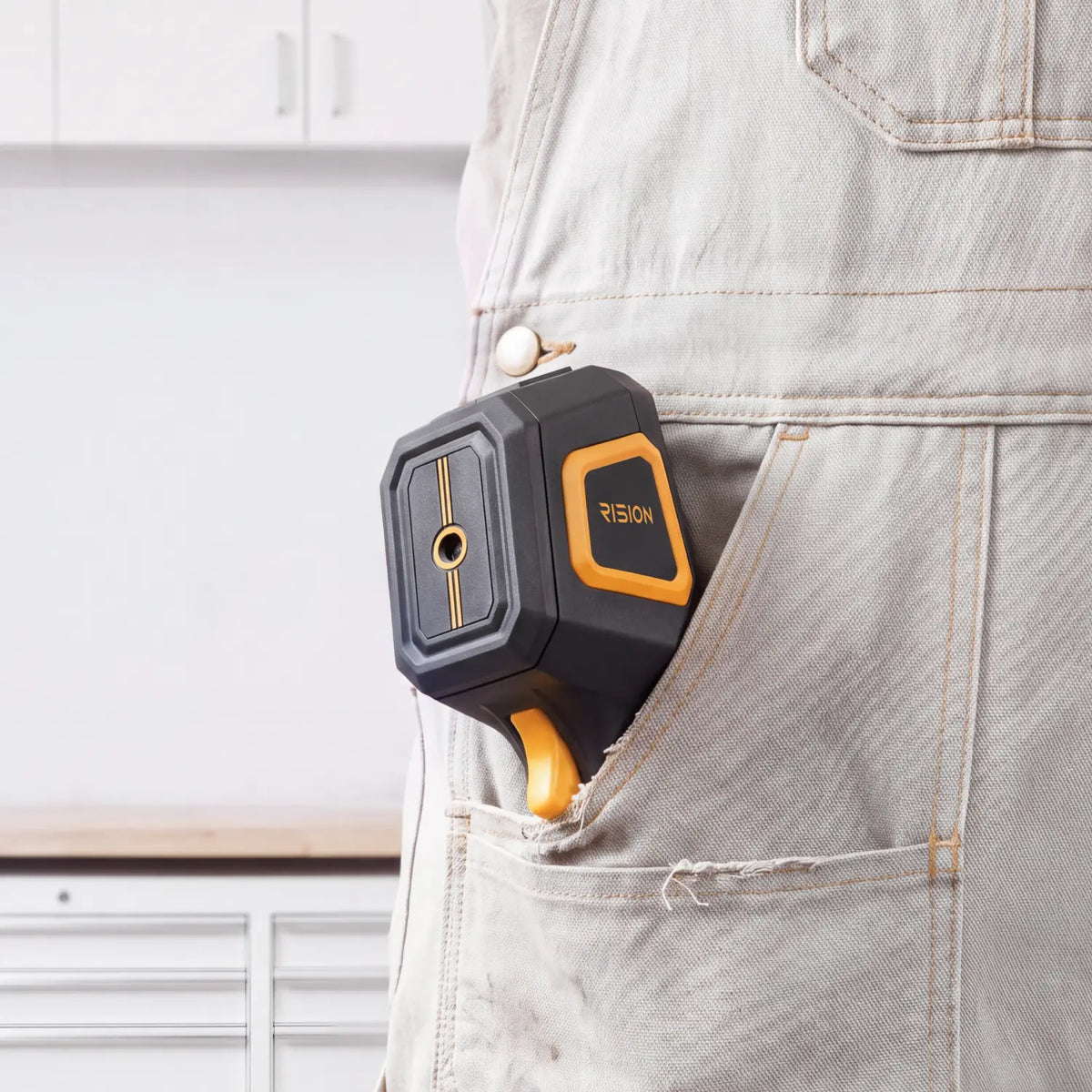

Handle Bumps & Drops
With vibration, shock, and 2m drop protection, HT01 is built to withstand everyday knocks and keep working reliably.

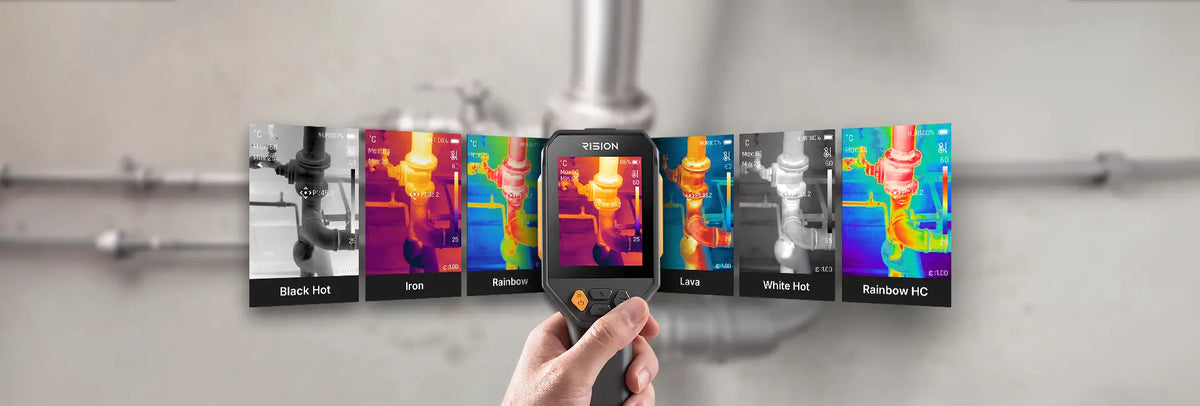

6 Practical Palettes
for Clearer Thermal Contrast
Choose from 6 practical color palettes tailored for home maintenance and light industrial inspection tasks. Each palette highlights temperature differences clearly in different environments, making thermal images easier to read and interpret in everyday diagnostic work.

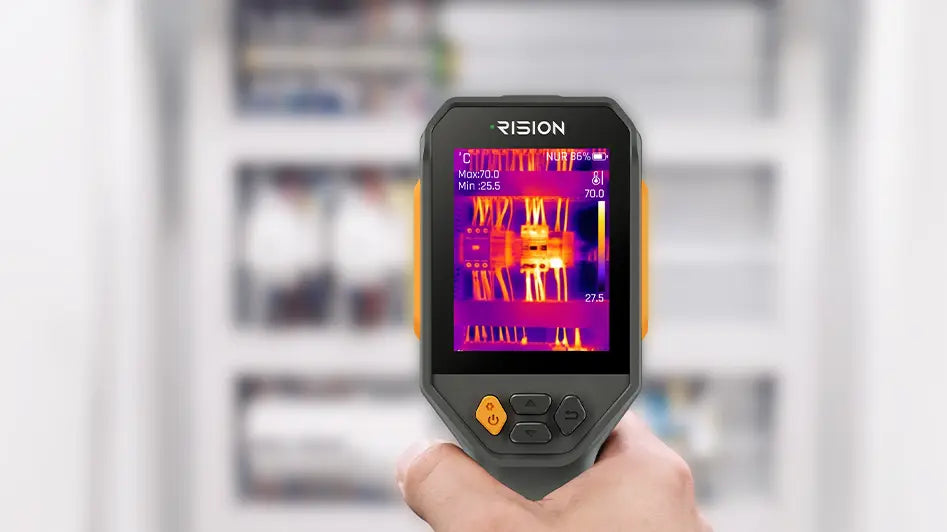

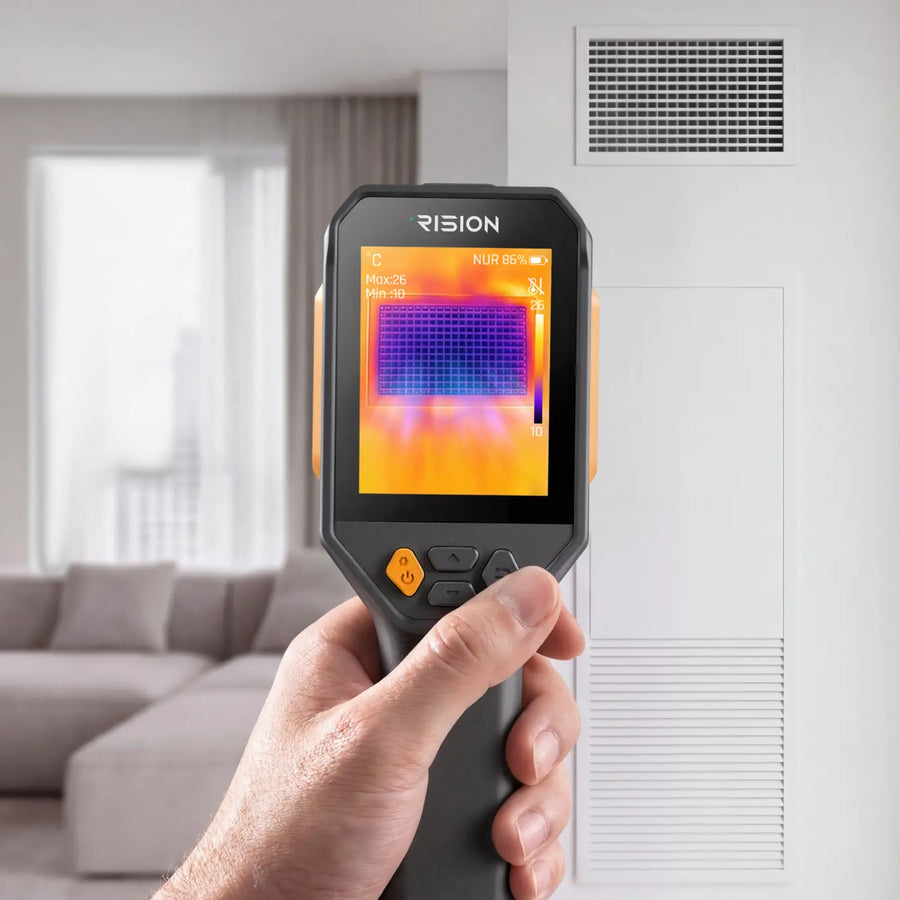

Electrical Inspection

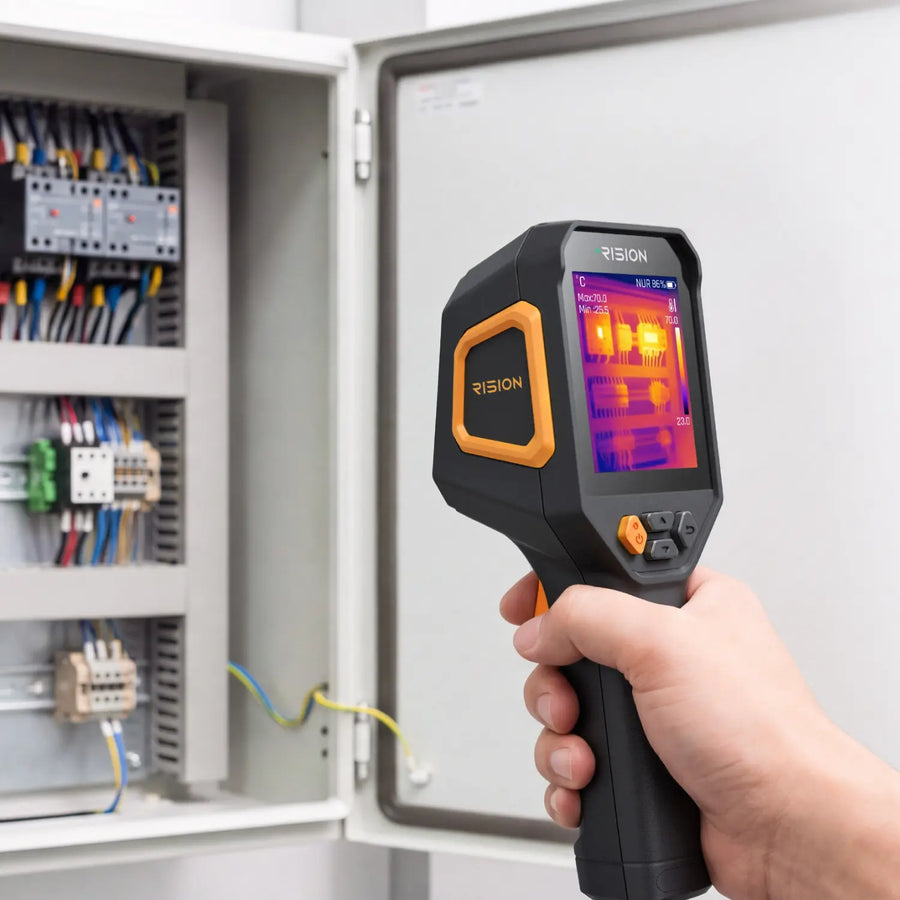

Building Inspection

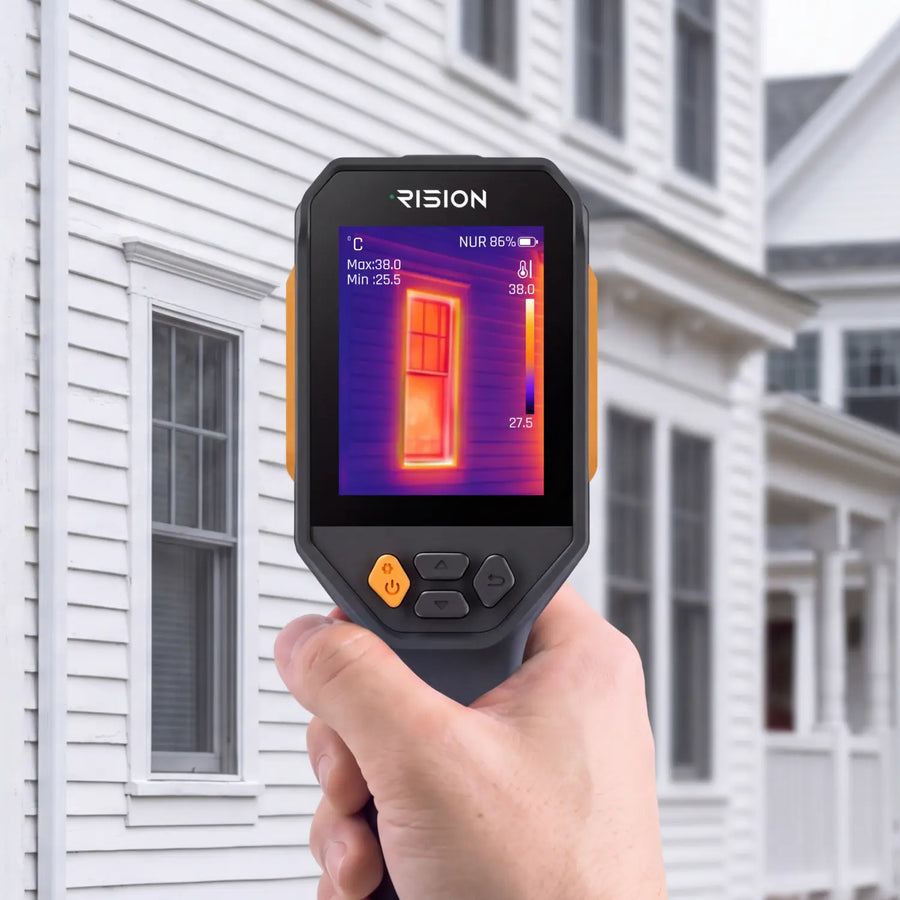

Air-Conditioning Maintenance

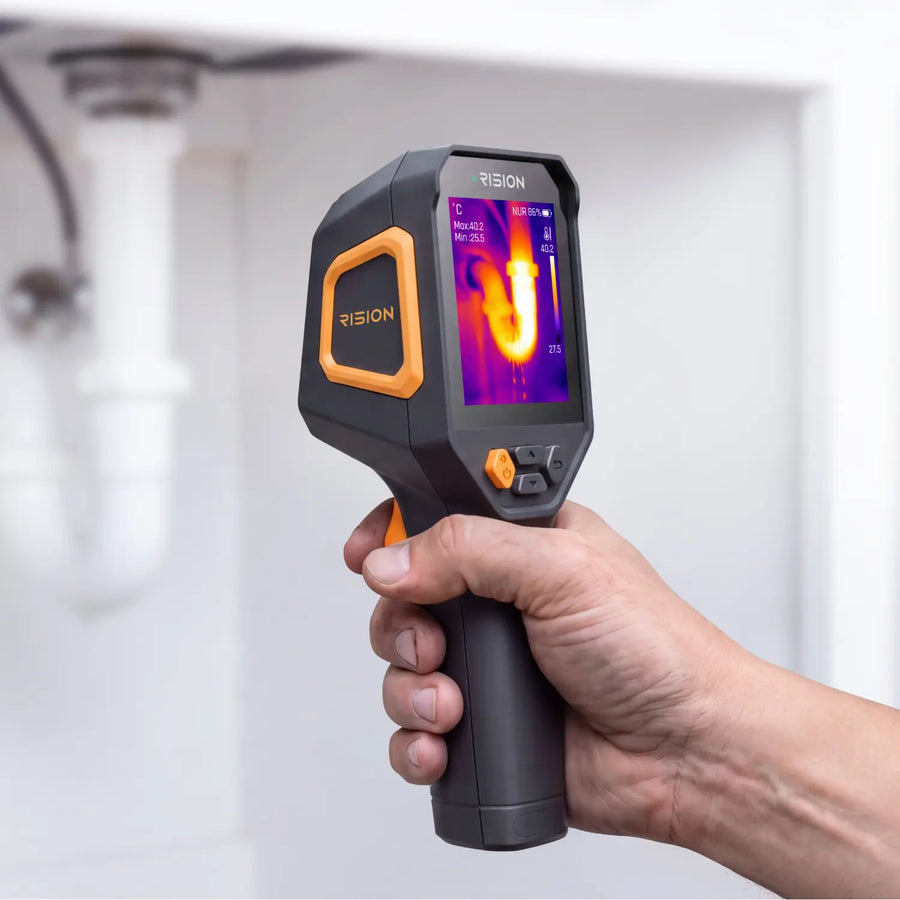

HVAC System Inspection

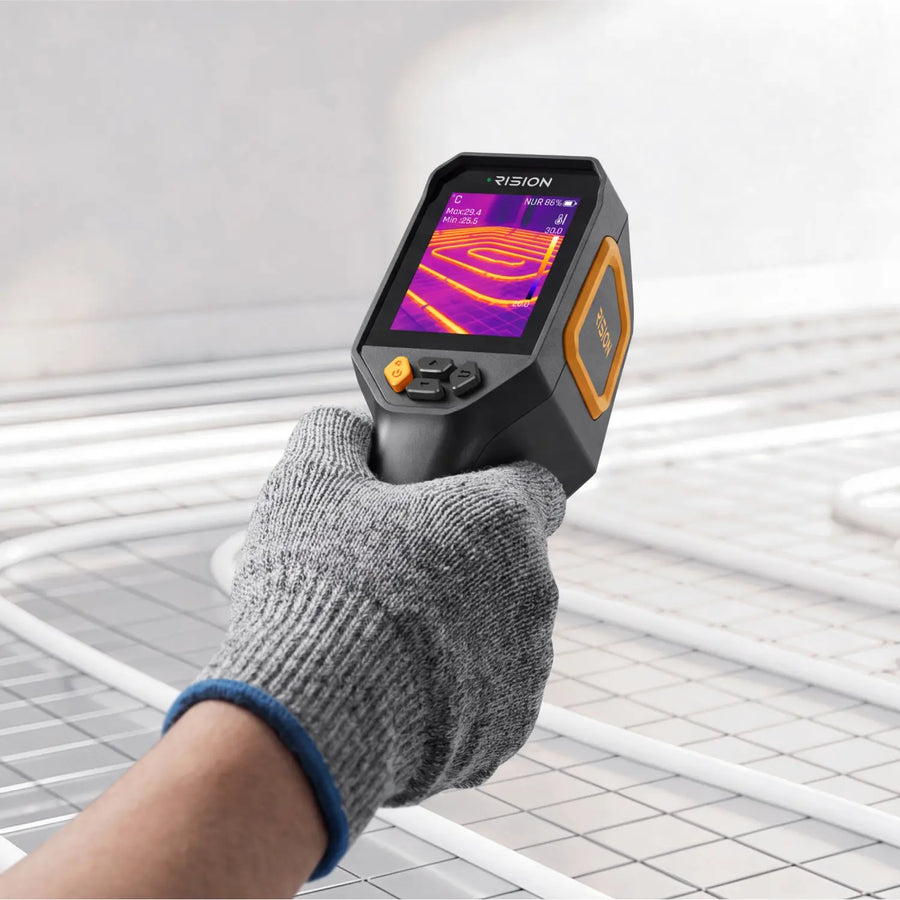

Automotive Inspection

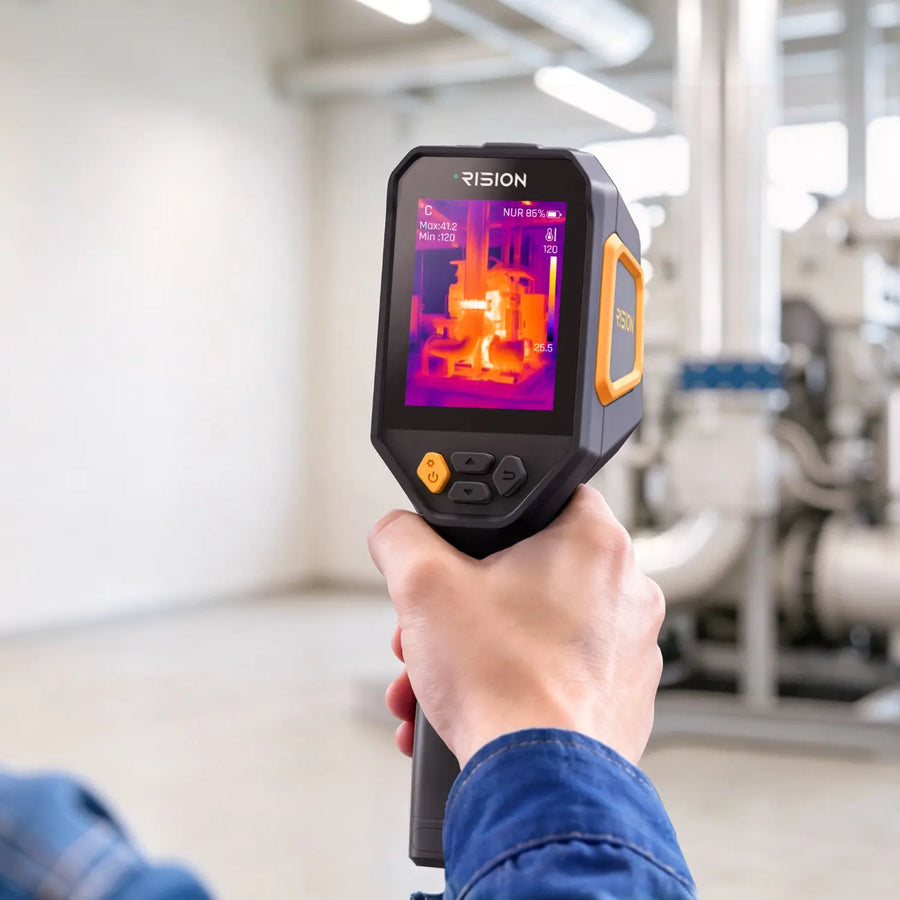

Industrial Maintenance
Product Specs
PARAMETERRISION Torix (HT01)
Infrared Resolution160 × 120
Super-Resolution320 × 240
NETD≤40mK
Infrared Frame Rate25Hz
Spectral Range8 - 14μm
Focal Length2.6mm
FOV40°×30°
Focus ModeFixed focus
IFOV4.62 mrad
Minimum Imaging Distance11cm
Measurement Range-4°F ~ 1022°F (-20°C ~ 550°C)
Measurement Accuracy±2°C or ±2%
Analysis Functions on the DeviceCentral point / Highest temperature point / Lowest temperature point / 3 custom points
Color Palette6 colors (White Hot, Black Hot, Iron Red, Lava, Rainbow, and Rainbow HC)
Connection ModeUSB2.0 Type-C
CompatibilityWindows PC (Infrared Analysis Software)
Display2.8-inch; 320*240 screen
Storage TypeRemovable MicroSD Card (512MB included, supports up to 128GB)
Battery Capacity2750mAh
Battery Life≥10 hours
Charging Time1h
Charging ModeUSB2.0 Type-C cable charging
Tripod SocketSupport
Operation Temperature-20°C ~ 50°C
Storage Temperature-40°C ~ 70°C
Protection LevelIP54
Drop Protection2m
Weight257g
Dimensions207.2×67×81.5mm
AuthenticationCE/FCC/RCM/ROHS/UN38.3/DGM
In the Box
What's Included
- 1RISION Magic Thermal Camera × 1
- 2USB-C Extension Cable × 1
- 3Carrying Pouch × 1
- 4Quick Start Guide × 1
Software & Support
APP for Your Devices · User Manual
FAQ
If there is no pop-up, no image, or the device is not recognized, first make sure you are using the appropriate RISION Magic Series version for your mobile device and that you have installed the latest official app. Then confirm that the required system permissions are enabled, including USB access and camera permission.
Check the cable connection and app permissions. Close background apps that may interrupt USB or camera access, then reconnect the device.
The shutter periodically calibrates the sensor. A short click and a brief image pause during this process are normal.
Open the official app settings and disable the shutter or NUC calibration option if your model supports it.
